DCS & DMCU 510

V8 DCS & DMCU 510

®

Digital Conference & Main Control Unit

Konferensi Pers, diskusi panel, sesi pleno, ataupun acara konferensi lainnya, anda dapat mengandalkan sistem konferensi karya V8 Sound yang mampu mengakomodir 60 unit microphone delegate + chairman tanpa perlu menggunakan extender.

Electroacoustic specs

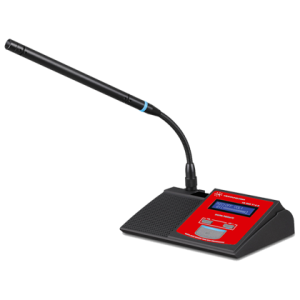

DCS 510 C & V8 DCS 510 D

Power Suply	: DC 24 V
Microphone Type	: Condenser
Frequency Response	: 30 Hz – 18 kHz
Max SPL	: 105 dB
S/N	: > 80 dB
THD	: < 0,8%

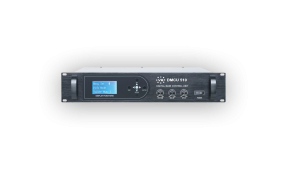

DMCU 510

Dimensions of LCD	: 70,7 mm x 38,8 mm (128×64)
Power	: AC 220 V ± 10% 50 Hz
Frequency Response	: 20 Hz – 20 kHz
Output Impedance	: Rec = 200 Ω
	Line = 200 Ω
	Balance = 300 Ω
	Nobalance = 400 Ω
